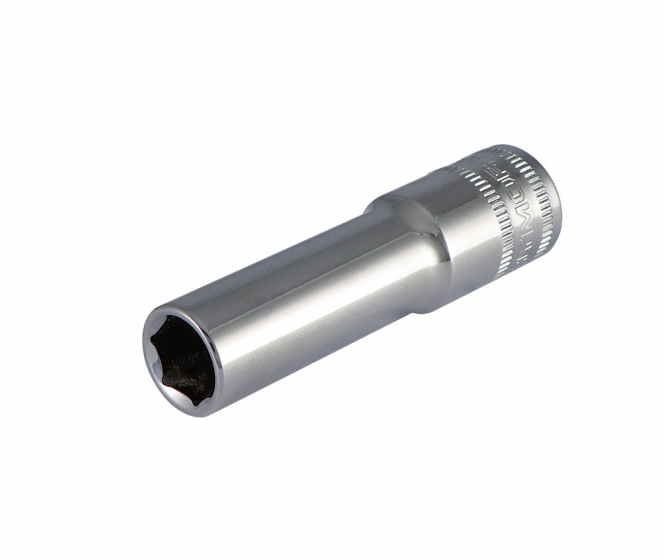

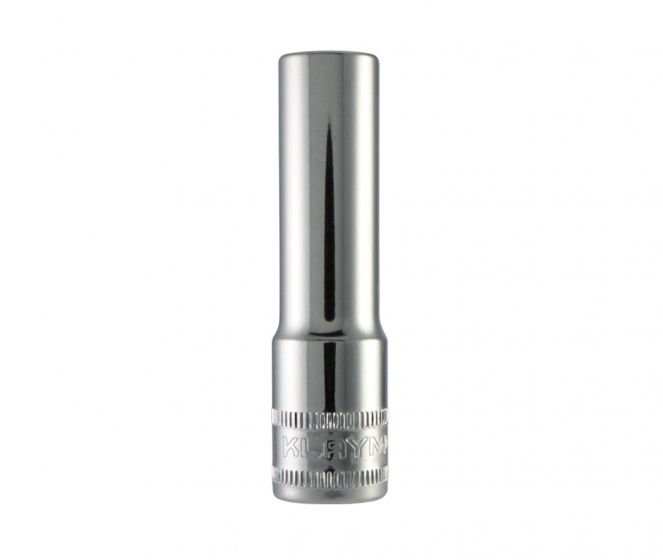

3/8" DR. DEEP SOCKETS
- METRIC
- 6PT
- Alloy Chrome-Vanadium Steel, Polished, Chrome.
- 4 Ball Grooves for Position.
- Thin wall construction for easy access in tight spaces.
Please scroll the table
| Item No. | Description | D1(mm) | D2(mm) | L1(mm) | L2(mm) |
|---|---|---|---|---|---|
| KDS3806060 | 6mm | 10.1 | 17.6 | 44 | 6.5 |
| KDS3806070 | 7mm | 11.05 | 17.6 | 44 | 6.5 |
| KDS3806080 | 8mm | 12.2 | 17.6 | 44 | 6.5 |
| KDS3806090 | 9mm | 13.6 | 17.6 | 44 | 7 |
| KDS3806100 | 10mm | 15 | 17.6 | 44 | 7 |
| KDS3806110 | 11mm | 16.75 | 17.6 | 44 | 7 |
| KDS3806120 | 12mm | 17.8 | 22.4 | 44 | 7 |
| KDS3806130 | 13mm | 18.8 | 22.4 | 44 | 7 |
| KDS3806140 | 14mm | 20 | 22.4 | 47 | 12 |
| KDS3806150 | 15mm | 22.4 | 22.4 | 47 | 13.5 |
| KDS3806160 | 16mm | 22.5 | 22.5 | 50 | 13.5 |
| KDS3806170 | 17mm | 23.8 | 23.8 | 50 | 13.5 |
| KDS3806180 | 18mm | 24.6 | 24.6 | 54 | 13.5 |
| KDS3806190 | 19mm | 25.7 | 25.7 | 54 | 13.5 |
| KDS3806200 | 20mm | 27.76 | 27.76 | 54 | 16 |
| KDS3806210 | 21mm | 28.8 | 28.8 | 63 | 16 |
| KDS3806220 | 22mm | 30 | 30 | 63 | 17 |
