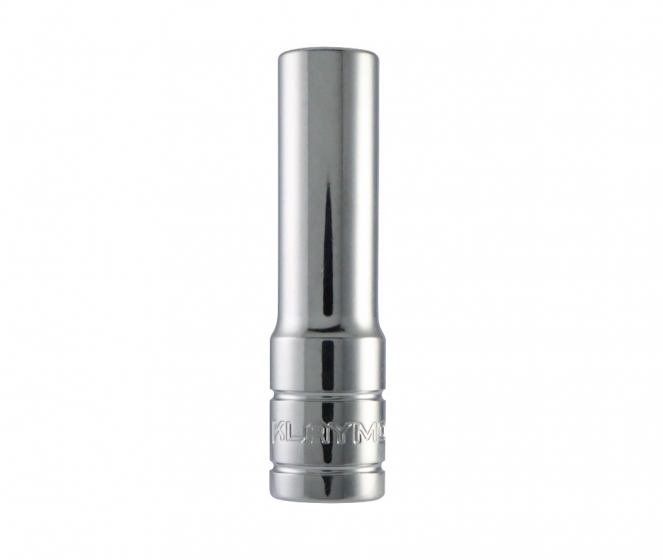

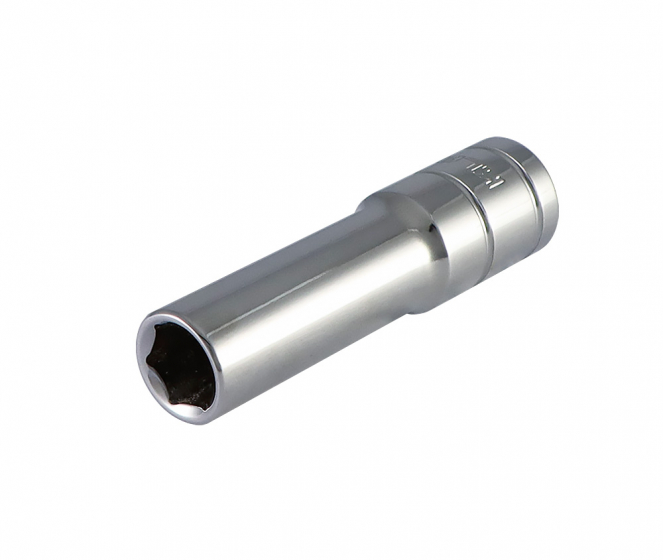

3/8" DR. DEEP SOCKETS
- SAE
- 6PT
- Alloy Chrome-Vanadium Steel, Polished, Chrome.
- 4 Ball Grooves for Position.
- Thin wall construction for easy access in tight spaces.
Please scroll the table
| Item No. | Description | D1(mm) | D2(mm) | L1(mm) | L2(mm) |
|---|---|---|---|---|---|
| KDS3806420 | 1/4" | 0.472 | 0.69 | 1.75 | 0.313 |
| KDS3806440 | 9/32" | 0.496 | 0.69 | 1.75 | 0.313 |
| KDS3806460 | 5/16" | 0.521 | 0.69 | 1.75 | 0.344 |
| KDS3806480 | 11/32" | 0.567 | 0.69 | 1.75 | 0.391 |
| KDS3806500 | 3/8" | 0.613 | 0.69 | 1.75 | 0.406 |
| KDS3806520 | 7/16" | 0.683 | 0.69 | 1.75 | 0.438 |
| KDS3806540 | 1/2" | 0.751 | 0.88 | 1.75 | 0.516 |
| KDS3806560 | 9/16" | 0.814 | 0.88 | 1.875 | 0.594 |
| KDS3806580 | 5/8" | 0.89 | 0.89 | 2 | 0.672 |
| KDS3806600 | 11/16" | 0.968 | 0.968 | 2.125 | 0.672 |
| KDS3806620 | 3/4" | 1.11 | 1.11 | 2.125 | 0.672 |
| KDS3806640 | 13/16" | 1.141 | 1.141 | 2.48 | 0.672 |
| KDS3806660 | 7/8" | 1.25 | 1.25 | 2.48 | 1.188 |
| KDS3806680 | 15/16" | 1.31 | 1.31 | 2.48 | 1.188 |
| KDS3806700 | 1" | 1.38 | 1.38 | 2.48 | 1.188 |
