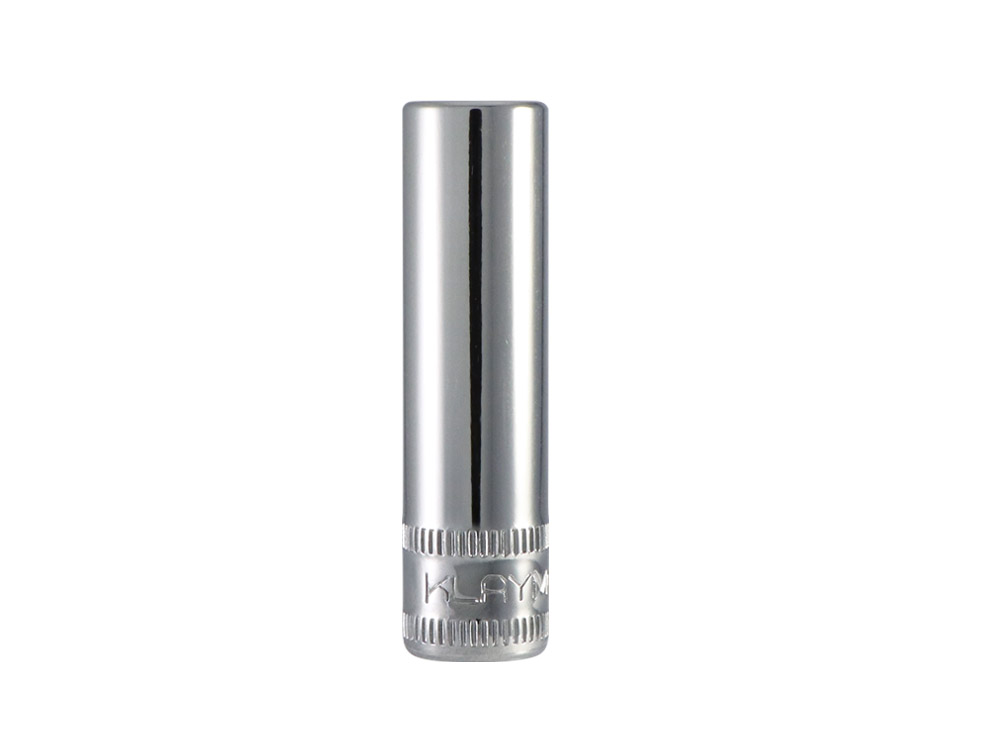

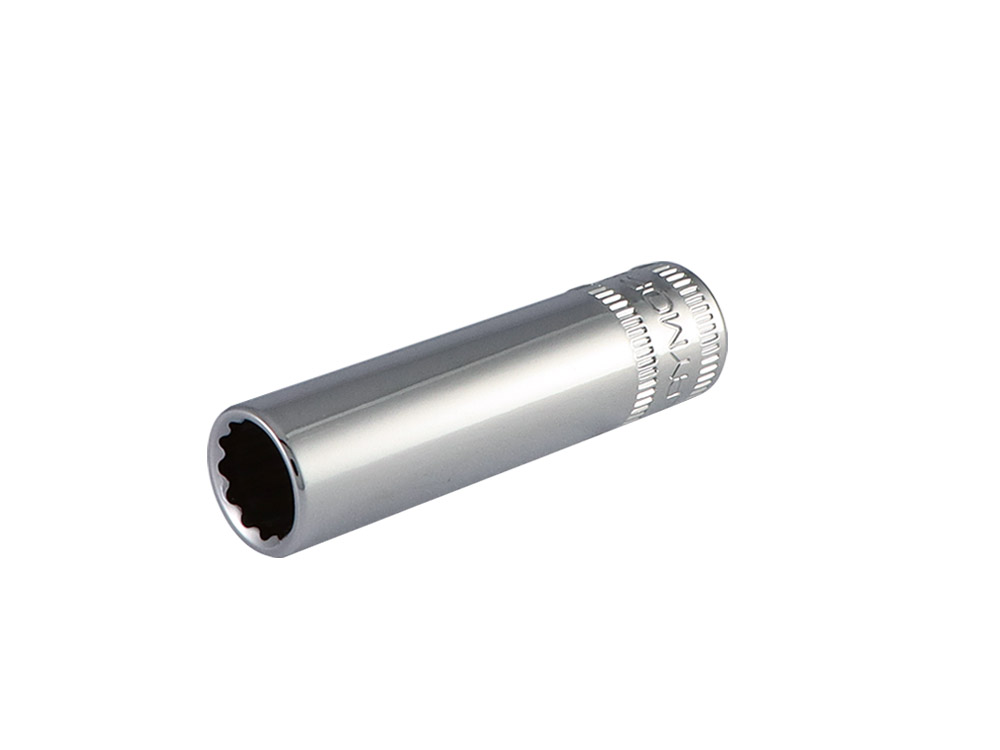

1/4" DR. DEEP SOCKETS
- METRIC
- 12PT
- Alloy Chrome-Vanadium Steel, Polished, Chrome.
- 4 Ball Grooves for Position.
- Thin wall construction for easy access in tight spaces.
Please scroll the table
| Item No. | Description | D1(mm) | D2(mm) | L1(mm) | L2(mm) |
|---|---|---|---|---|---|
| KDS1412040 | 4mm | 7.1 | 12.95 | 49 | 2.8 |
| KDS1412045 | 4.5mm | 7.6 | 12.95 | 49 | 2.8 |
| KDS1412050 | 5mm | 8.15 | 12.95 | 49 | 2.8 |
| KDS1412055 | 5.5mm | 8.9 | 12.95 | 49 | 2.8 |
| KDS1412060 | 6mm | 9.9 | 12.95 | 49 | 3.05 |
| KDS1412070 | 7mm | 10.9 | 12.95 | 49 | 3.55 |
| KDS1412080 | 8mm | 12.2 | 12.95 | 49 | 3.55 |
| KDS1412090 | 9mm | 13.45 | 13.45 | 49 | 4.05 |
| KDS1412100 | 10mm | 14.75 | 14.75 | 49 | 4.6 |
| KDS1412110 | 11mm | 16 | 16 | 49 | 5.46 |
| KDS1412120 | 12mm | 17.3 | 17.3 | 49 | 6.1 |
| KDS1412130 | 13mm | 18.55 | 18.55 | 49 | 6.75 |
| KDS1412140 | 14mm | 19.8 | 19.8 | 49 | 6.75 |
