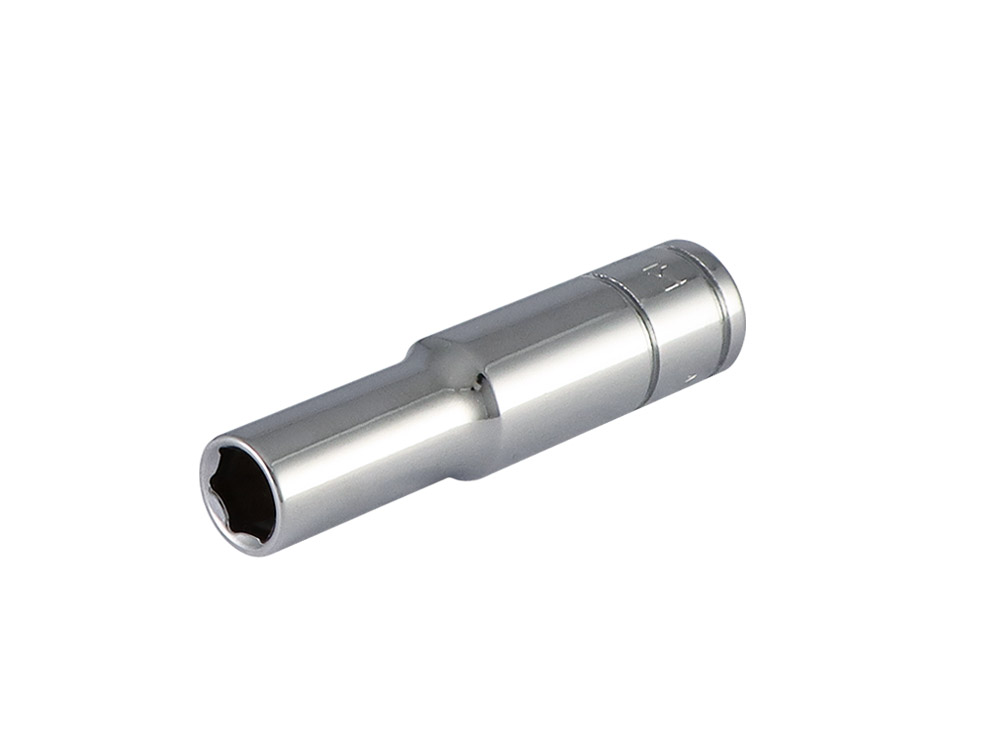

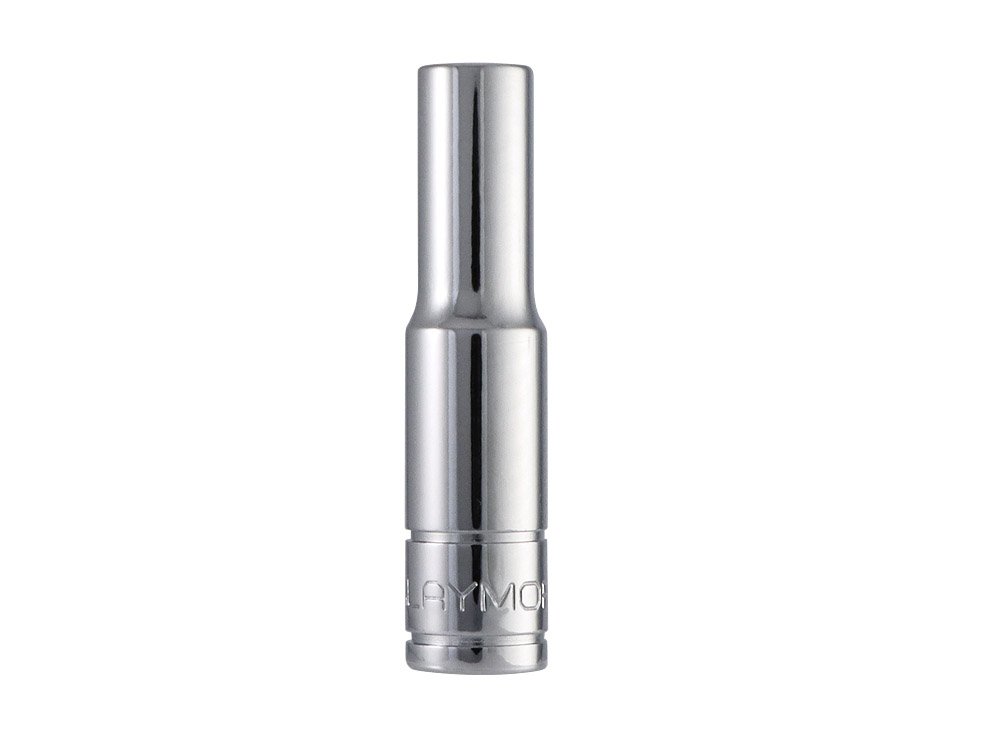

1/4" DR. DEEP SOCKETS
- SAE
- 6PT
- Alloy Chrome-Vanadium Steel, Polished, Chrome.
- 4 Ball Grooves for Position.
- Thin wall construction for easy access in tight spaces.
Please scroll the table
| Item No. | Description | D1(mm) | D2(mm) | L1(mm) | L2(mm) |
|---|---|---|---|---|---|
| KDS1406360 | 5/32" | 0.281 | 0.51 | 1.93 | 0.281 |
| KDS1406380 | 3/16" | 0.338 | 0.51 | 1.93 | 0.281 |
| KDS1406400 | 7/32" | 0.382 | 0.51 | 1.93 | 0.375 |
| KDS1406420 | 1/4" | 0.425 | 0.51 | 1.93 | 0.375 |
| KDS1406440 | 9/32" | 0.457 | 0.51 | 1.93 | 0.375 |
| KDS1406460 | 5/16" | 0.51 | 0.51 | 1.93 | 0.375 |
| KDS1406480 | 11/32" | 0.547 | 0.547 | 1.93 | 0.625 |
| KDS1406500 | 3/8" | 0.597 | 0.597 | 1.93 | 0.625 |
| KDS1406520 | 7/16" | 0.683 | 0.683 | 1.93 | 0.625 |
| KDS1406540 | 1/2" | 0.697 | 0.697 | 1.93 | 0.625 |
| KDS1406560 | 9/16' | 0.778 | 0.778 | 1.93 | 0.625 |
