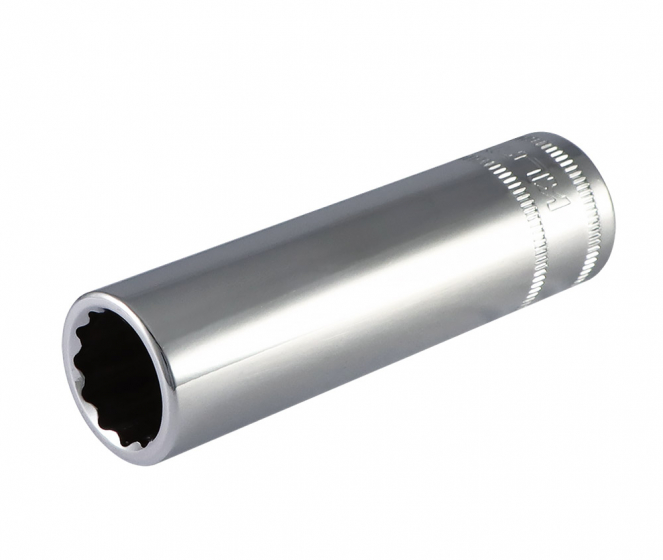

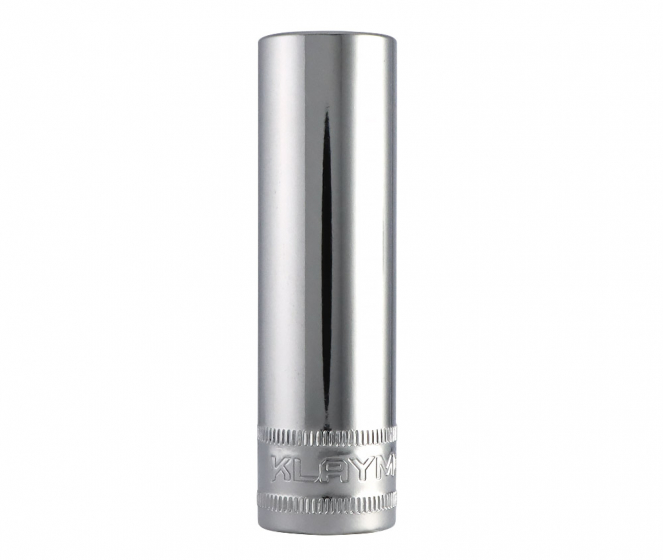

1/2" DR. DEEP SOCKETS
- MERTIC
- 12PT
- Alloy Chrome-Vanadium Steel, Polished, Chrome.
- 4 Ball Grooves for Position.
- Thin wall construction for easy access in tight spaces.
Please scroll the table
| Item No. | Description | D1(mm) | D2(mm) | L1(mm) | L2(mm) |
|---|---|---|---|---|---|
| KDS1212080 | 8mm | 14 | 23.87 | 76 | 3.75 |
| KDS1212090 | 9mm | 15.1 | 23.87 | 76 | 4.05 |
| KDS1212100 | 10mm | 16.8 | 23.87 | 76 | 4.6 |
| KDS1212110 | 11mm | 18.2 | 23.87 | 76 | 5.45 |
| KDS1212120 | 12mm | 18.7 | 23.87 | 76 | 6.1 |
| KDS1212130 | 13mm | 20.25 | 23.87 | 76 | 6.75 |
| KDS1212140 | 14mm | 21.8 | 23.87 | 76 | 8.35 |
| KDS1212150 | 15mm | 22.4 | 23.87 | 76 | 8.35 |
| KDS1212160 | 16mm | 23.87 | 23.87 | 76 | 9.5 |
| KDS1212170 | 17mm | 24.75 | 24.75 | 76 | 9.5 |
| KDS1212180 | 18mm | 26.14 | 26.14 | 76 | 10.15 |
| KDS1212190 | 19mm | 27.2 | 27.2 | 76 | 11.1 |
| KDS1212200 | 20mm | 27.95 | 27.95 | 76 | 11.5 |
| KDS1212210 | 21mm | 28.95 | 28.95 | 76 | 11.7 |
| KDS1212220 | 22mm | 30.2 | 30.2 | 76 | 12.45 |
| KDS1212230 | 23mm | 31.25 | 31.25 | 76 | 12.7 |
| KDS1212240 | 24mm | 32.15 | 32.15 | 76 | 13.85 |
| KDS1212250 | 25mm | 33.4 | 33.4 | 76 | 14 |
| KDS1212260 | 26mm | 35.05 | 35.05 | 76 | 14.6 |
| KDS1212270 | 27mm | 36.75 | 36.75 | 76 | 15.8 |
| KDS1212280 | 28mm | 37.8 | 37.8 | 76 | 16.25 |
| KDS1212290 | 29mm | 39.5 | 39.5 | 76 | 16.65 |
| KDS1212300 | 30mm | 42.4 | 42.4 | 76 | 16.65 |
| KDS1212310 | 31mm | 43.2 | 43.2 | 76 | 17.8 |
| KDS1212320 | 32mm | 44.5 | 44.5 | 76 | 19 |
