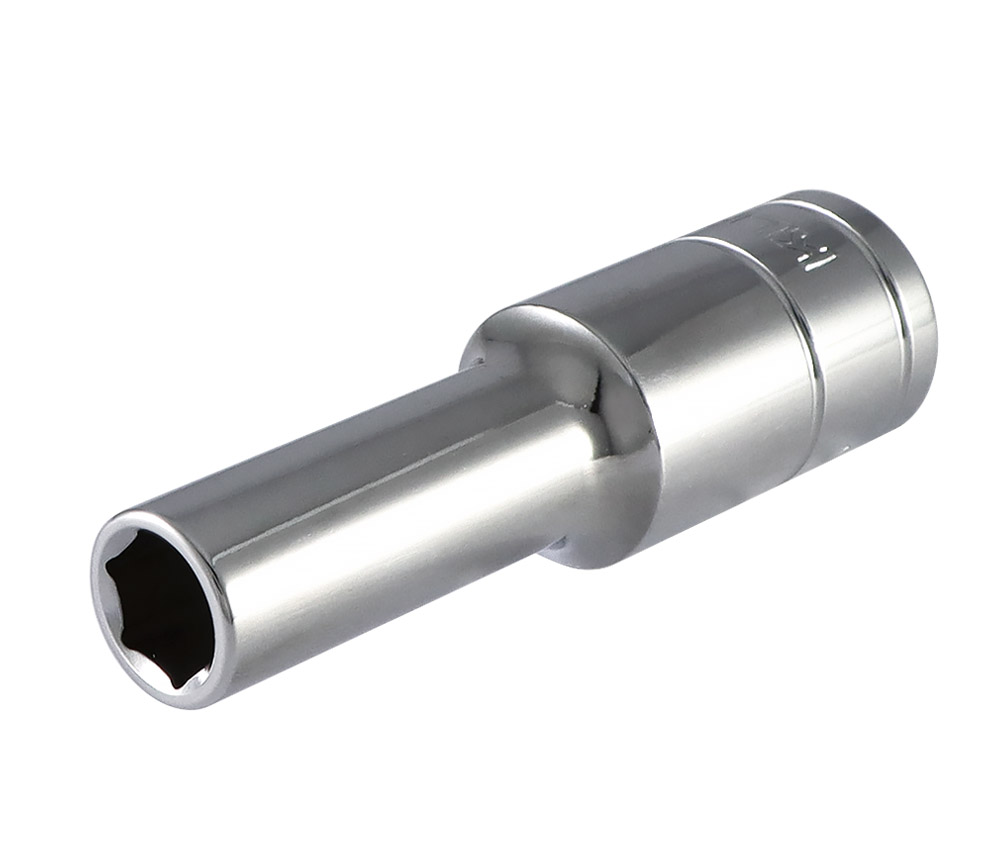

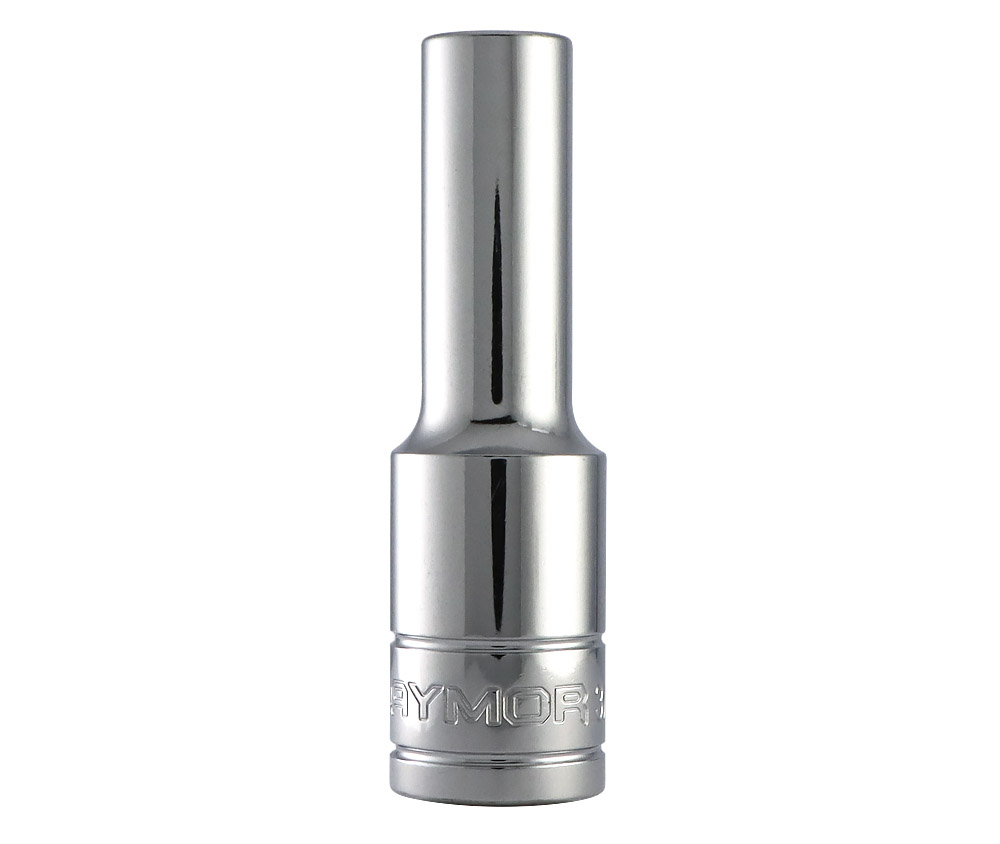

1/2" DR. DEEP SOCKETS
- SAE
- 6PT
- Alloy Chrome-Vanadium Steel, Polished, Chrome.
- 4 Ball Grooves for Position.
- Thin wall construction for easy access in tight spaces.
Please scroll the table
| Item No. | Description | D1(mm) | D2(mm) | L1(mm) | L2(mm) |
|---|---|---|---|---|---|
| KDS1206460 | 5/16" | — | — | — | — |
| KDS1206480 | 11/32" | — | — | — | — |
| KDS1206500 | 3/8" | 0.665 | 0.94 | 3 | 0.156 |
| KDS1206520 | 7/16" | 0.73 | 0.94 | 3 | 0.219 |
| KDS1206540 | 1/2" | 0.775 | 0.94 | 3 | 0.266 |
| KDS1206560 | 9/16" | 0.845 | 0.94 | 3 | 0.328 |
| KDS1206580 | 5/8" | 0.942 | 0.97 | 3 | 0.375 |
| KDS1206600 | 11/16" | 1.01 | 1.01 | 3 | 0.375 |
| KDS1206620 | 3/4" | 1.08 | 1.08 | 3 | 0.437 |
| KDS1206640 | 13/16" | 1.145 | 1.145 | 3 | 0.453 |
| KDS1206660 | 7/8" | 1.218 | 1.218 | 3 | 0.5 |
| KDS1206680 | 15/16" | 1.3 | 1.3 | 3 | 0.5 |
| KDS1206700 | 1" | 1.375 | 1.375 | 3 | 0.57 |
| KDS1206720 | 1-1/16" | 1.48 | 1.48 | 3 | 0.625 |
| KDS1206740 | 1-1/8" | 1.54 | 1.54 | 3 | 0.656 |
| KDS1206760 | 1-3/16" | 1.675 | 1.675 | 3 | 0.656 |
| KDS1206780 | 1-1/4" | 1.75 | 1.75 | 3 | 0.75 |
