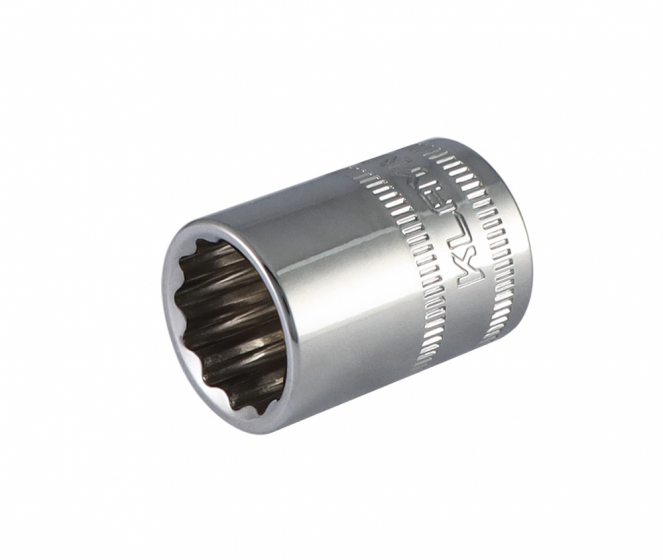

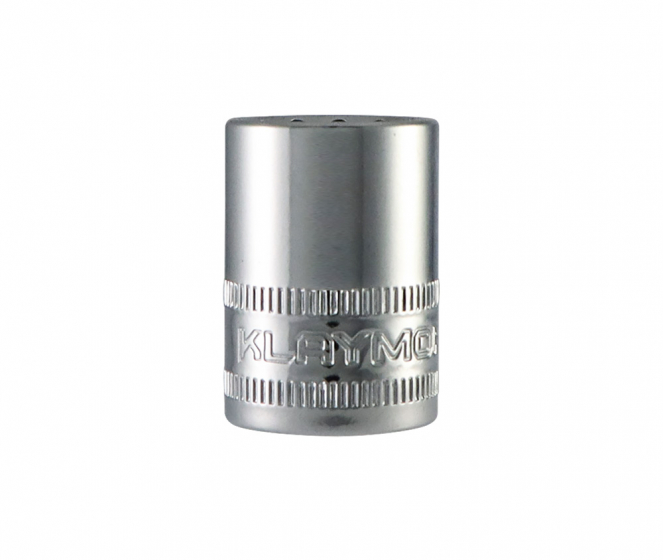

3/8" DR. SOCKETS
- METRIC
- 12PT
- Alloy Chrome-Vanadium Steel, Polished, Chrome.
- 4 Ball Grooves for Position.
- Thin wall construction for easy access in tight spaces.
Please scroll the table

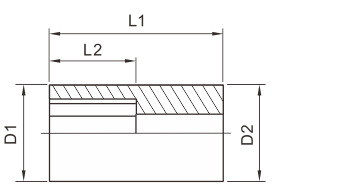

| Item No. | Description | D1(mm) | D2(mm) | L1(mm) | L2(mm) |
|---|---|---|---|---|---|
| KRS3812060 | 6mm | 10.1 | 17.6 | 32 | 6.5 |
| KRS3812070 | 7mm | 11.05 | 17.6 | 32 | 6.5 |
| KRS3812080 | 8mm | 12.2 | 17.6 | 32 | 6.5 |
| KRS3812090 | 9mm | 13.6 | 17.6 | 32 | 7 |
| KRS3812100 | 10mm | 15 | 17.6 | 32 | 7 |
| KRS3812110 | 11mm | 16.75 | 17.6 | 32 | 7 |
| KRS3812120 | 12mm | 17.8 | 22.4 | 32 | 7 |
| KRS3812130 | 13mm | 18.8 | 22.4 | 32 | 7 |
| KRS3812140 | 14mm | 20 | 22.4 | 32 | 12 |
| KRS3812150 | 15mm | 22.4 | 22.4 | 32 | 13.5 |
| KRS3812160 | 16mm | 22.5 | 22.5 | 32 | 13.5 |
| KRS3812170 | 17mm | 23.8 | 23.8 | 32 | 13.5 |
| KRS3812180 | 18mm | 24.6 | 24.6 | 32 | 13.5 |
| KRS3812190 | 19mm | 25.7 | 25.7 | 32 | 13.5 |
| KRS3812200 | 20mm | 27.76 | 27.76 | 32 | 16 |
| KRS3812210 | 21mm | 28.8 | 28.8 | 34 | 16 |
| KRS3812220 | 22mm | 30 | 30 | 34 | 17 |
