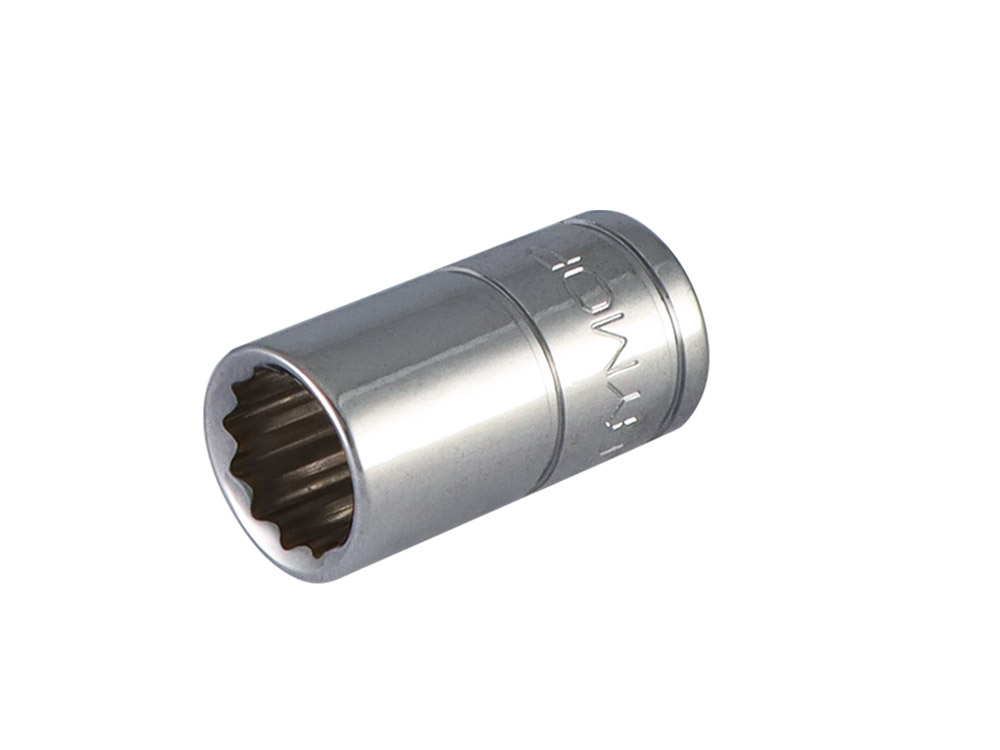

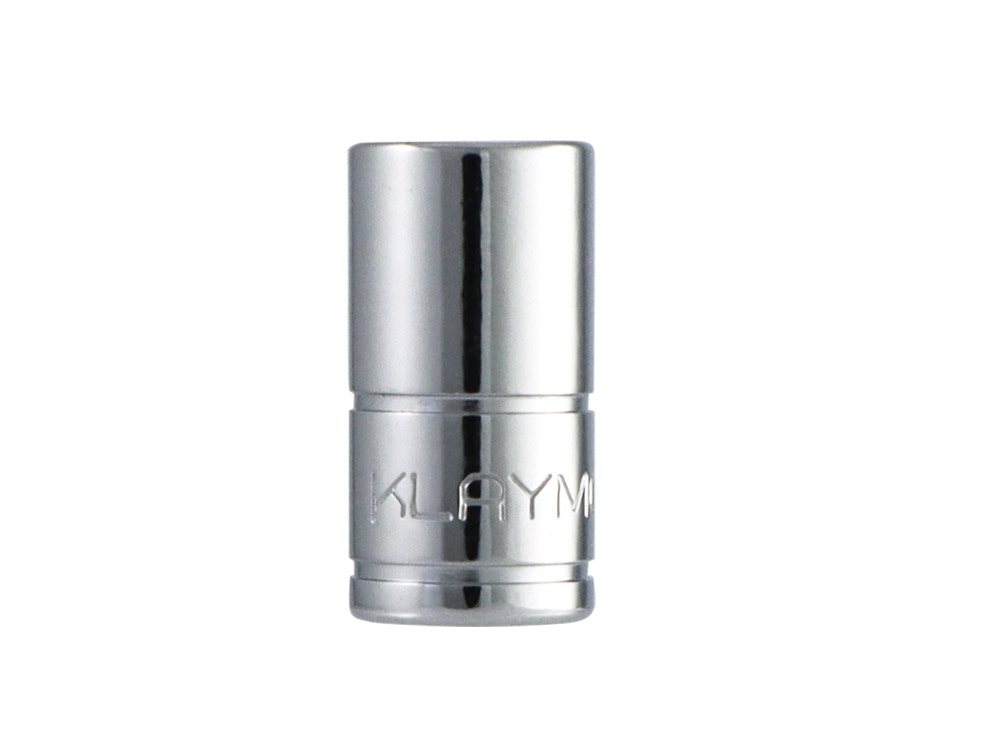

1/4" DR. SOCKETS

  • SAE
  • 12PT
  • Alloy Chrome-Vanadium Steel, Polished, Chrome.
  • 4 Ball Grooves for Position.
  • Thin wall construction for easy access in tight spaces.

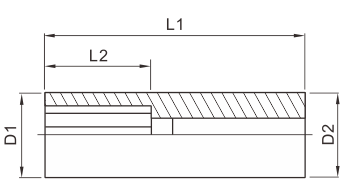

deepsocket 12pt diagram

Please scroll the table
Item No.DescriptionD1(mm)D2(mm)L1(mm)L2(mm)
KRS1412360 5/32" 0.281 0.51 1.01 0.281
KRS1412380 3/16" 0.338 0.51 1.01 0.281
KRS1412400 7/32" 0.382 0.51 1.01 0.375
KRS1412420 1/4" 0.425 0.51 1.01 0.375
KRS1412440 9/32" 0.457 0.51 1.01 0.375
KRS1412460 5/16" 0.51 0.51 1.01 0.375
KRS1412480 11/32" 0.547 0.547 1.01 0.625
KRS1412500 3/8" 0.597 0.597 1.01 0.625
KRS1412520 7/16" 0.683 0.683 1.01 0.625
KRS1412540 1/2" 0.697 0.697 1.01 0.625
KRS1412560 9/16" 0.778 0.778 1.01 0.625
