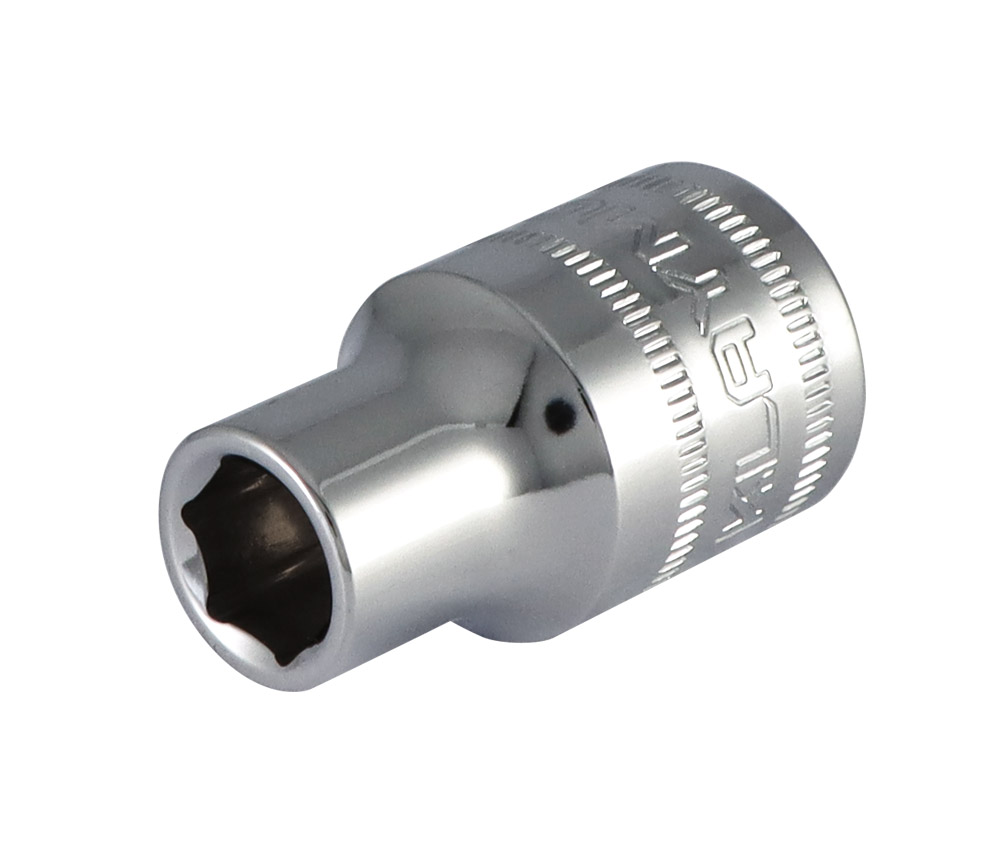

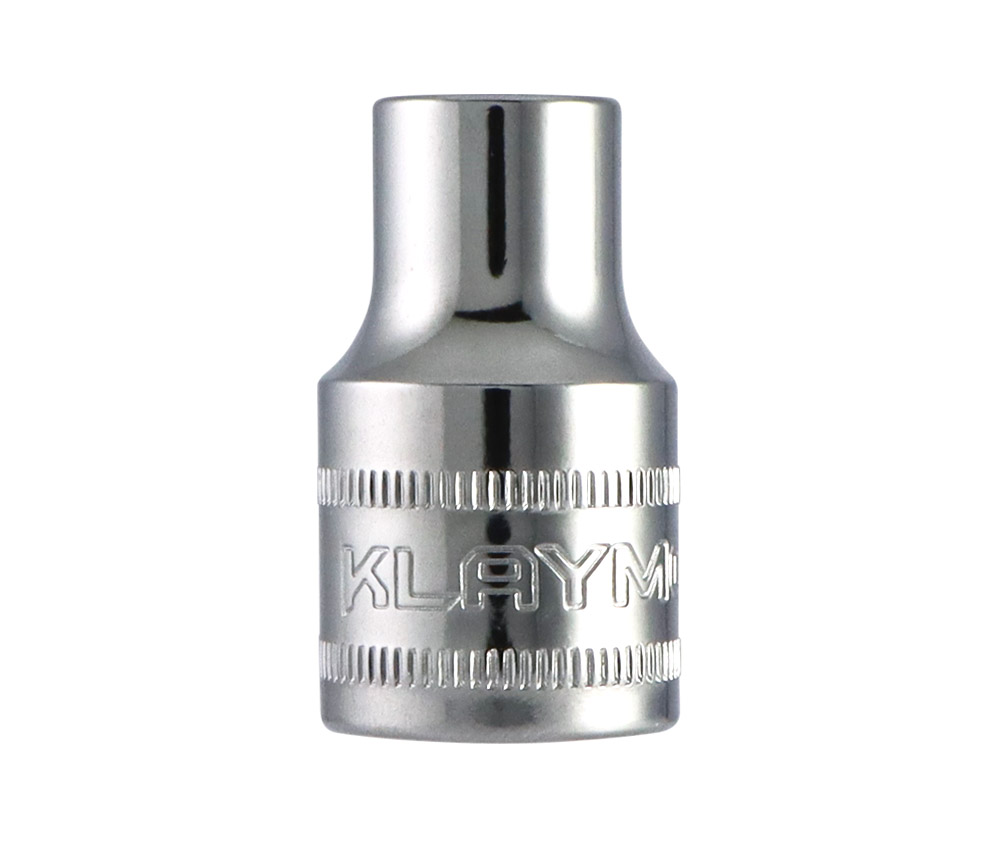

1/2" DR. SOCKETS
- METRIC
- 6PT
- Alloy Chrome-Vanadium Steel, Polished, Chrome.
- 4 Ball Grooves for Position.
- Thin wall construction for easy access in tight spaces.
Please scroll the table
| Item No. | Description | D1(mm) | D2(mm) | L1(mm) | L2(mm) |
|---|---|---|---|---|---|
| KRS1206080 | 8mm | 14 | 23.87 | 39 | 3.75 |
| KRS1206090 | 9mm | 15.1 | 23.87 | 39 | 4.05 |
| KRS1206100 | 10mm | 16.8 | 23.87 | 39 | 4.6 |
| KRS1206110 | 11mm | 18.2 | 23.87 | 39 | 5.45 |
| KRS1206120 | 12mm | 18.7 | 23.87 | 39 | 6.1 |
| KRS1206130 | 13mm | 20.25 | 23.87 | 39 | 6.75 |
| KRS1206140 | 14mm | 21.8 | 23.87 | 39 | 8.35 |
| KRS1206150 | 15mm | 22.4 | 23.87 | 40 | 8.35 |
| KRS1206160 | 16mm | 23.87 | 23.87 | 40 | 9.5 |
| KRS1206170 | 17mm | 24.75 | 24.75 | 40 | 9.5 |
| KRS1206180 | 18mm | 26.14 | 26.14 | 40 | 10.15 |
| KRS1206190 | 19mm | 27.2 | 27.2 | 40 | 11.1 |
| KRS1206200 | 20mm | 27.95 | 27.95 | 42 | 11.5 |
| KRS1206210 | 21mm | 28.95 | 28.95 | 42 | 11.7 |
| KRS1206220 | 22mm | 30.2 | 30.2 | 45 | 12.45 |
| KRS1206230 | 23mm | 31.25 | 31.25 | 45 | 12.7 |
| KRS1206240 | 24mm | 32.15 | 32.15 | 45 | 13.85 |
| KRS1206250 | 25mm | 33.4 | 33.4 | 45 | 14 |
| KRS1206260 | 26mm | 35.05 | 35.05 | 48 | 14.6 |
| KRS1206270 | 27mm | 36.75 | 36.75 | 48 | 15.8 |
| KRS1206280 | 28mm | 37.8 | 37.8 | 50 | 16.25 |
| KRS1206290 | 29mm | 39.5 | 39.5 | 50 | 16.65 |
| KRS1206300 | 30mm | 42.4 | 42.4 | 50 | 16.65 |
| KRS1206310 | 31mm | 43.2 | 43.2 | 50 | 17.8 |
| KRS1206320 | 32mm | 44.5 | 44.5 | 51 | 19 |
