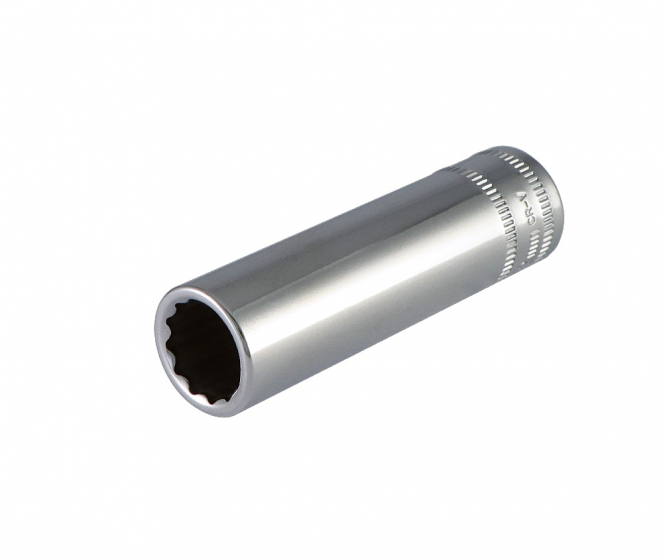

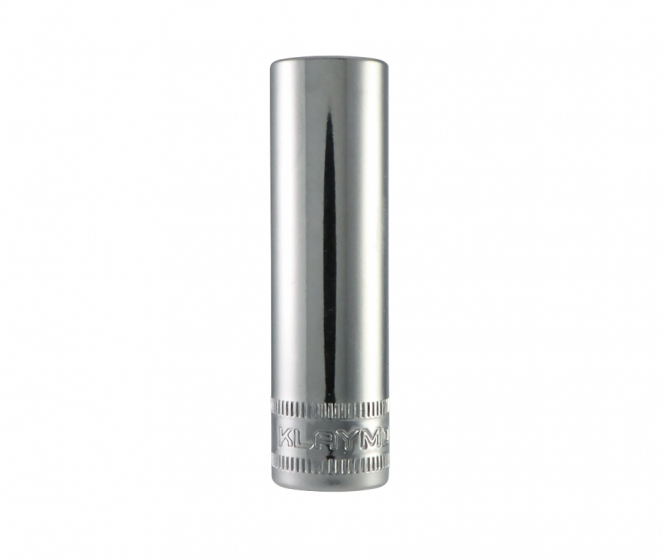

DADO LARGO ENCASTRE DE 3/8”

  • MÉTRICO
  • 12PT
  • Aleación de Acero cromo vanadio, acabado pulido.
  • 4 ranuras semiesféricas para posicionamiento.
  • Construcción con paredes delgadas para fácil acceso en lugares reducidos.

deepsocket 12pt diagram

Please scroll the table

No. de producto

Descripción

D1(mm)D2(mm)L1(mm)L2(mm)
KDS3812060 6mm 10.1 17.6 44 6.5
KDS3812070 7mm 11.05 17.6 44 6.5
KDS3812080 8mm 12.2 17.6 44 6.5
KDS3812090 9mm 13.6 17.6 44 7
KDS3812100 10mm 15 17.6 44 7
KDS3812110 11mm 16.75 17.6 44 7
KDS3812120 12mm 17.8 22.4 44 7
KDS3812130 13mm 18.8 22.4 44 7
KDS3812140 14mm 20 22.4 47 12
KDS3812150 15mm 22.4 22.4 47 13.5
KDS3812160 16mm 22.5 22.5 50 13.5
KDS3812170 17mm 23.8 23.8 50 13.5
KDS3812180 18mm 24.6 24.6 54 13.5
KDS3812190 19mm 25.7 25.7 54 13.5
KDS3812200 20mm 27.76 27.76 54 16
KDS3812210 21mm 28.8 28.8 63 16
KDS3812220 22mm 30 30 63 17
