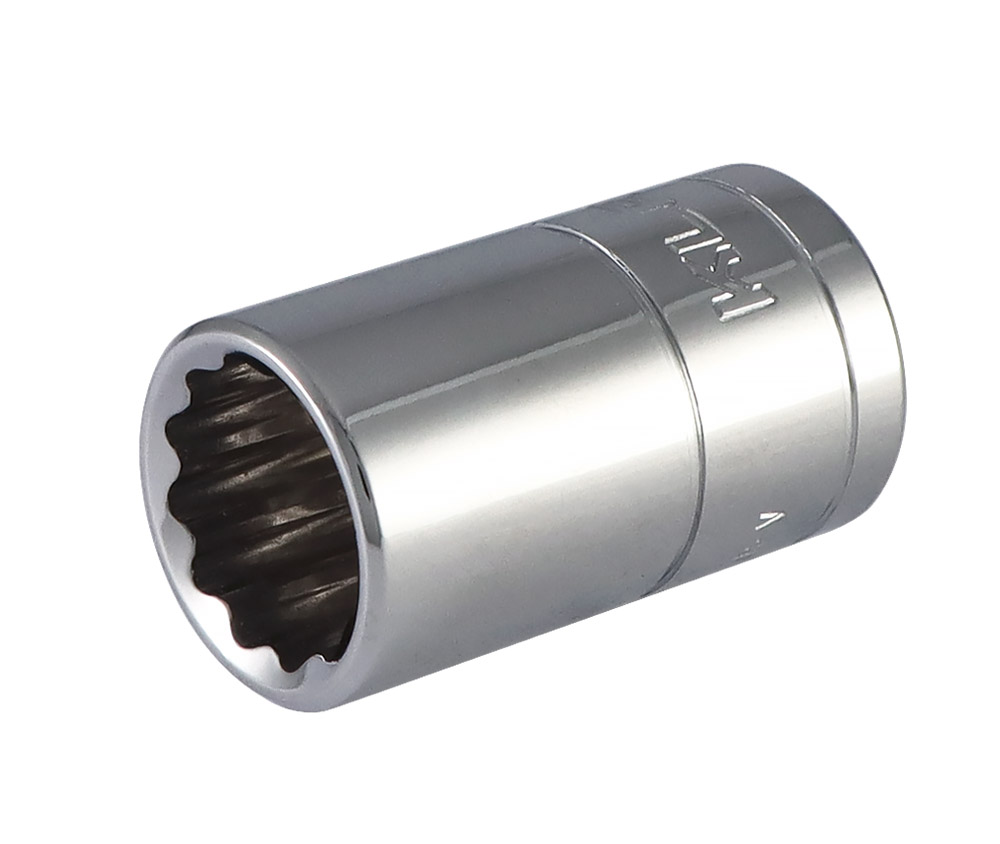

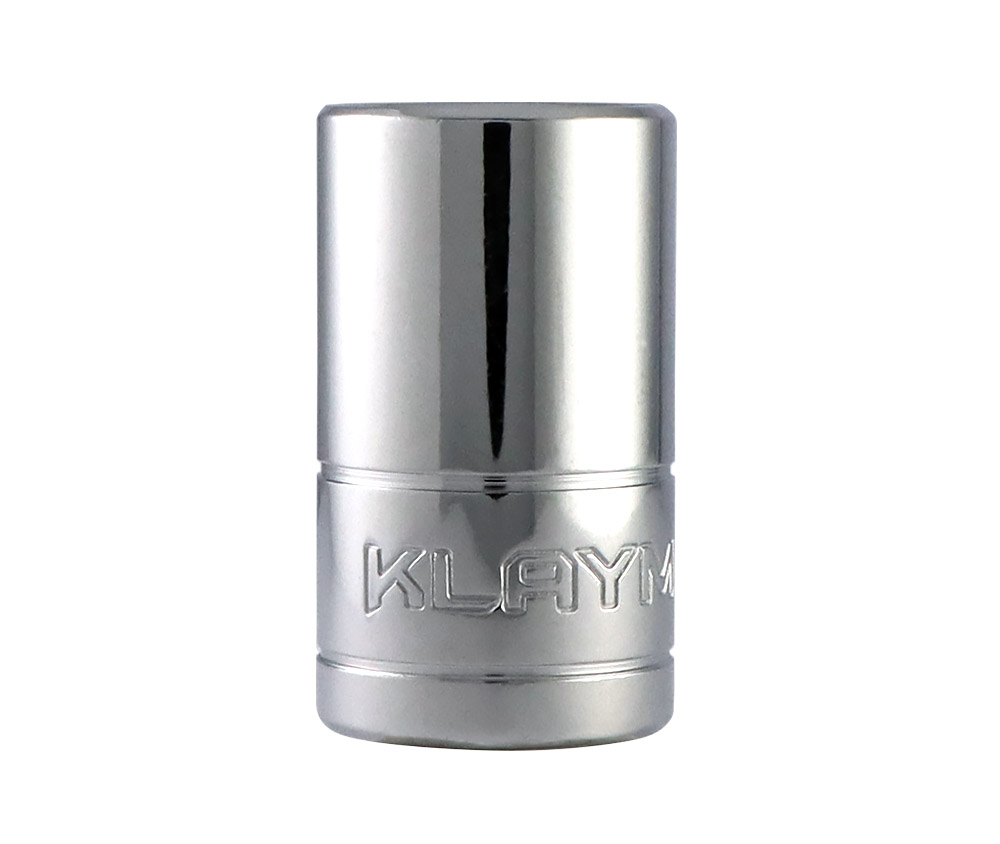

DADO ENCASTRE DE 1/2”

  • ESTÁNDAR
  • 12PT
  • Aleación de Acero cromo vanadio, acabado pulido.
  • 4 ranuras semiesféricas para posicionamiento.
  • Construcción con paredes delgadas para fácil acceso en lugares reducidos.

socket 12pt diagram

Please scroll the table

No. de producto

Descripción

D1(mm)D2(mm)L1(mm)L2(mm)
KRS1212460 5/16"
KRS1212480 11/32"
KRS1212500 3/8" 0.665 0.94 1.525 0.156
KRS1212520 7/16" 0.73 0.94 1.525 0.219
KRS1212540 1/2" 0.775 0.94 1.525 0.266
KRS1212560 9/16" 0.845 0.94 1.572 0.328
KRS1212580 5/8" 0.942 0.97 1.572 0.375
KRS1212600 11/16" 1.01 1.01 1.572 0.375
KRS1212620 3/4" 1.08 1.08 1.572 0.437
KRS1212640 13/16" 1.145 1.145 1.635 0.453
KRS1212660 7/8" 1.218 1.218 1.76 0.5
KRS1212680 15/16" 1.3 1.3 1.76 0.5
KRS1212700 1" 1.375 1.375 1.76 0.57
KRS1212720 1-1/16" 1.48 1.48 1.853 0.625
KRS1212740 1-1/8" 1.54 1.54 1.947 0.656
KRS1212760 1-3/16" 1.675 1.675 1.947 0.656
KRS1212780 1-1/4" 1.75 1.75 2.015 0.75
